Backyard Sauna and Cold Plunge Wiring in Vancouver, WA (1943 Home)

Saunas and cold plunges are showing up in a lot more backyards, and both need the wiring done right. We wired a backyard barrel sauna and cold plunge at a 1943 home in Vancouver, WA, and fixed a few code compliance items the inspector had flagged while we were there.

Wiring an electric sauna heater

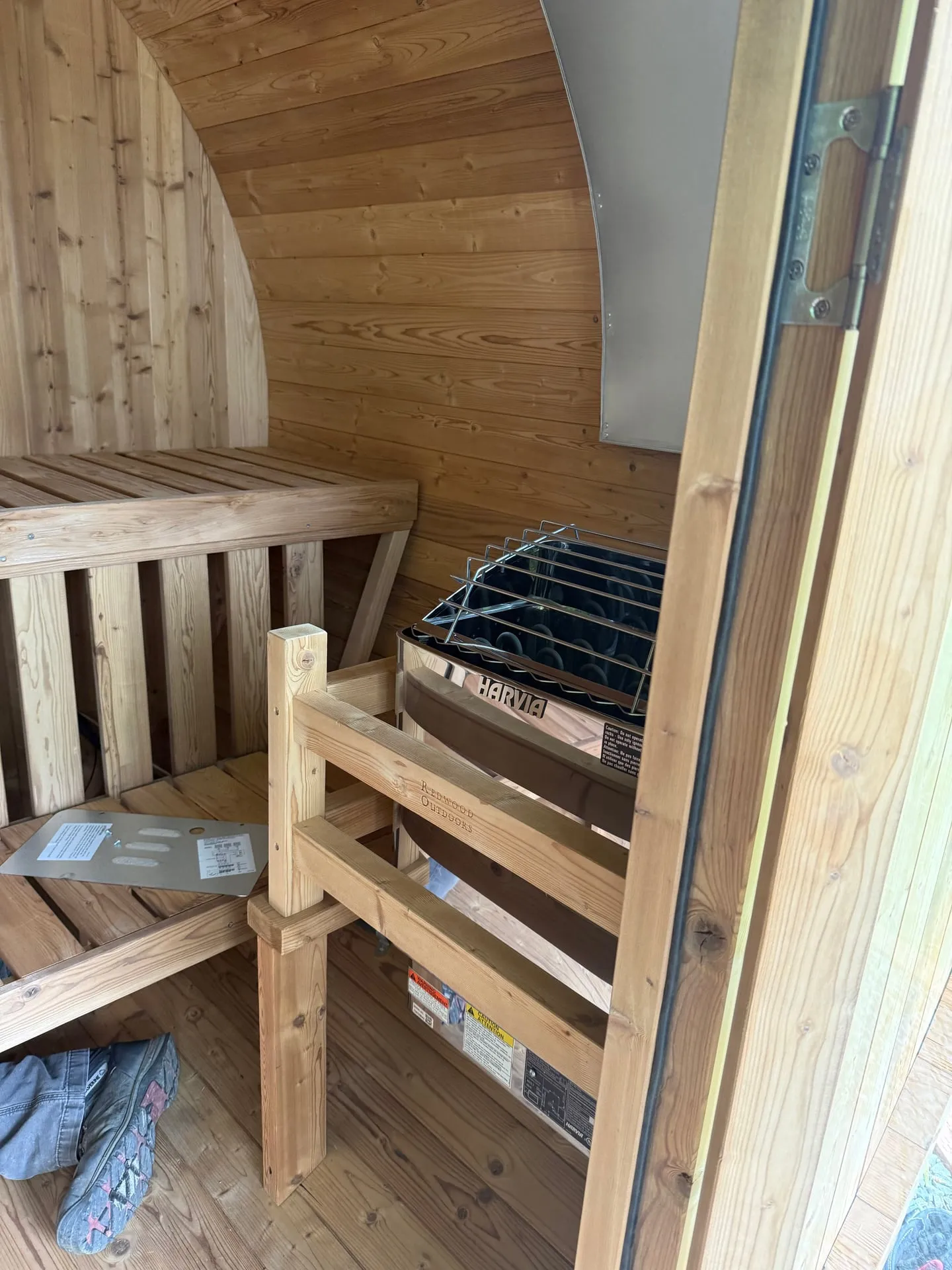

The sauna is a cedar barrel with a Harvia electric heater, the kind that heats a small room past 150 degrees. You don’t plug that heater in. It runs on a dedicated circuit and a power unit that switches the load:

• The power unit mounts on the outside wall and gets its power from the house
• A weatherproof liquidtight whip runs down to the disconnect at the base, because all of this is outside

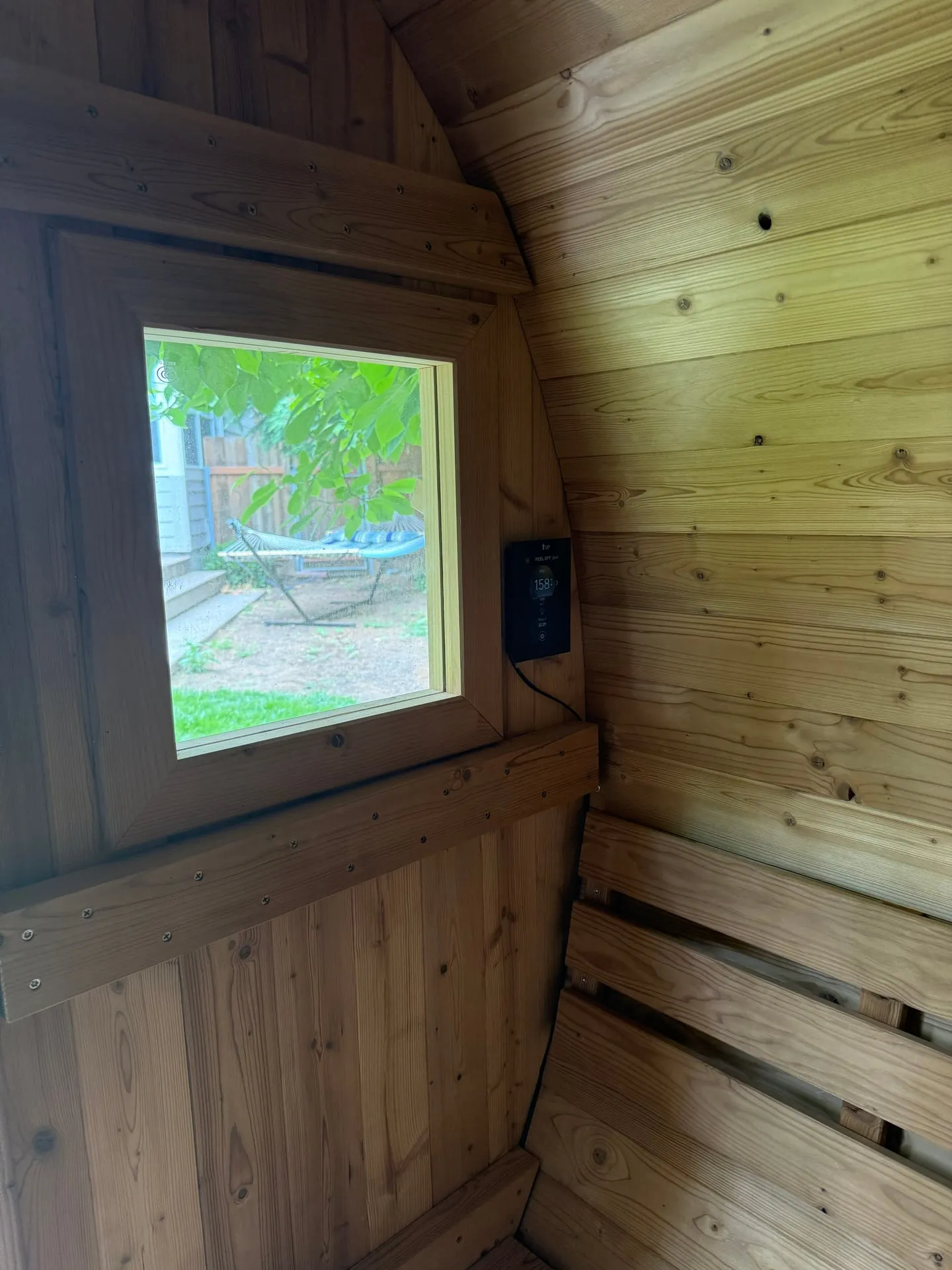

• The digital controller inside lets you set the temperature and a timer from the bench

Everything that carries real power is hardwired and weatherproof. The only thing you touch is the little controller by the window.

A dedicated outlet for the cold plunge

The cold plunge sits next to the sauna, and its chiller needs steady power. Instead of plugging it into whatever outlet was nearby, we gave it its own dedicated outlet so the compressor isn’t sharing the circuit. If the chiller trips a breaker, you end up with a tub of warm water.

Fixing what the inspector flagged

The other half of the visit was inspection corrections. When earlier electrical work gets a correction notice, everything on it has to be fixed and checked again before the permit closes. We went through the list and fixed each item to the 2023 NEC that Washington adopted in April 2024.

On a 1943 house that’s normal. Old wiring meets new additions, and the inspector wants the connections between them brought up to code. It costs a lot less to fix them than to leave an open correction on the property. If you’re adding big loads like a sauna to an older service, our guide to whether your service can handle more load is worth a read.
