Two Dedicated 30-Amp Circuits in Vancouver, WA (Twist-Lock Outlets for High-Draw Gear)

We ran two dedicated circuits for a home in Vancouver, WA. The homeowner needed two 30-amp, 240-volt outlets on a living room wall for high-draw equipment, each on its own circuit so they don’t fight over power. Two runs, two twist-lock outlets, and some panel work to make it all fit.

Why high-draw equipment gets its own circuit

When one piece of equipment can pull close to 30 amps, sharing a circuit means tripped breakers and dimming. A dedicated circuit fixes that:

• That one outlet gets the whole breaker to itself
• No flicker when something else on the circuit turns on
• If it trips, only that equipment goes down, not half the room

We put in two, completely separate. Each got its own breaker, its own run back to the panel, and its own twist-lock outlet so the plug locks in and can’t work loose.

Making room in a full panel

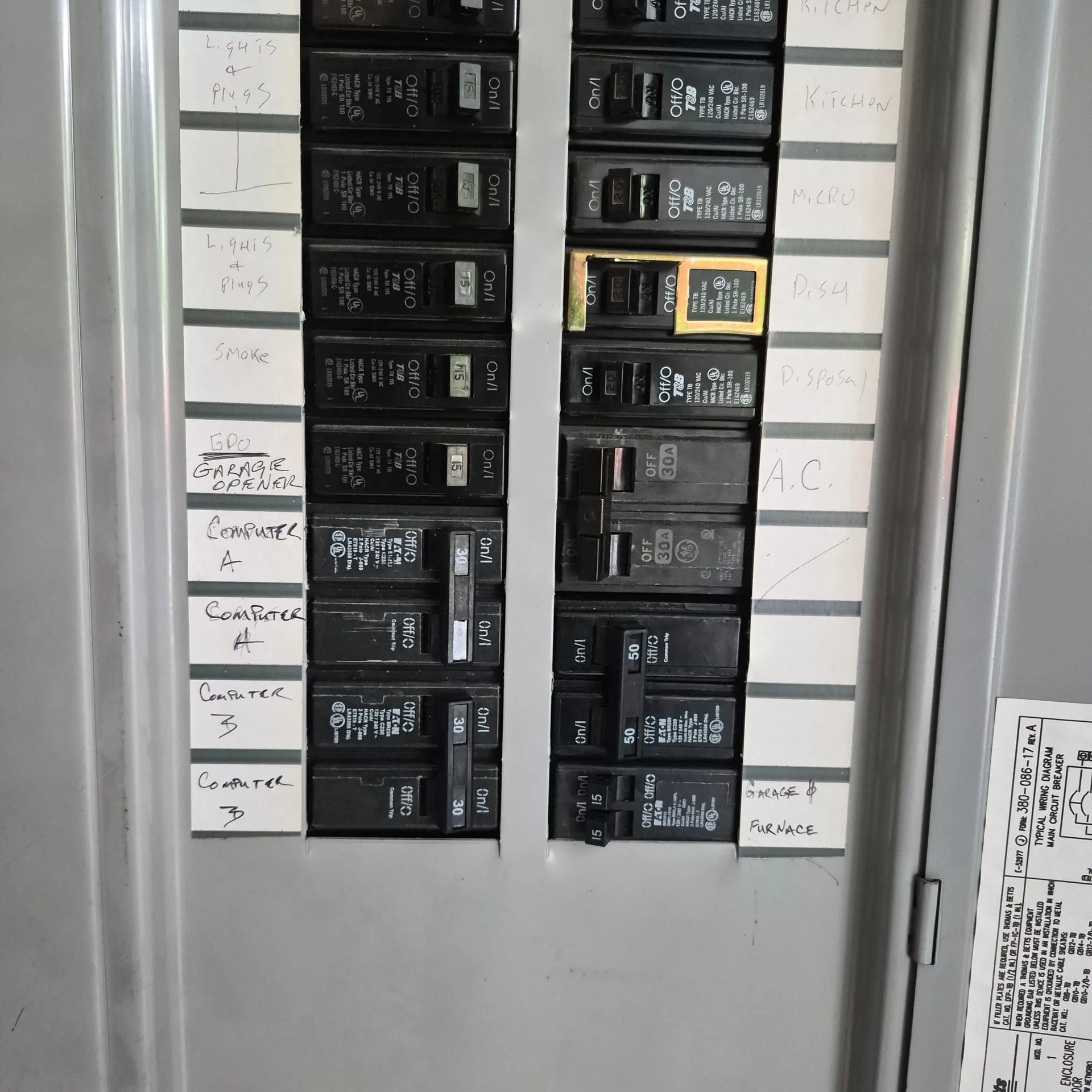

On a job like this, the hard part is usually the panel, not the run. This one was already pretty full, so we had to free up space before we could add two double-pole 30-amp breakers.

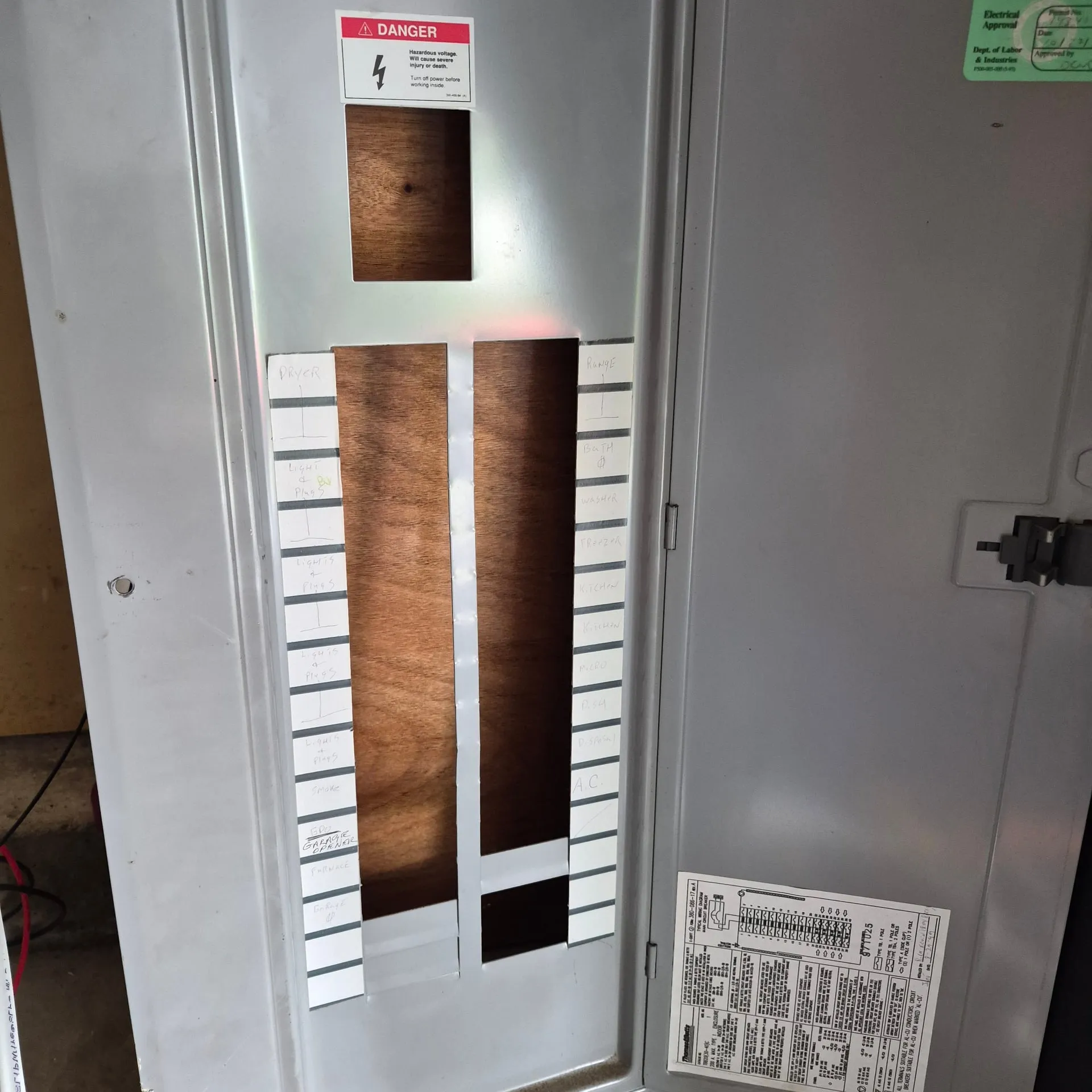

We used a tandem breaker, which puts two existing circuits in one slot where the panel allows it. That opened up room for the new breakers without a subpanel or a service upgrade. Done right and within what the panel’s rated for, it’s a clean way to get space back. If a panel’s really out of room and tandems aren’t allowed, that’s a different conversation. Our guide to when a panel is out of room covers that.

A clean run

The two circuits ran about 40 feet back to the panel in 3/4-inch conduit. Conduit protects the wire and makes it easy to work on later. If the homeowner’s setup changes, there’s a clear path to pull new wire without opening walls.

Need a dedicated circuit for a shop tool, a server, or other high-draw equipment in Vancouver? Call 360-828-7143 or get the circuits scoped for a free estimate.
