A/C Circuit and Disconnect in Vancouver, WA (Same-Day HVAC Hookup)

When an HVAC crew sets a new air conditioner in the morning, somebody has to have the electrical ready that afternoon, or the homeowner goes the night without A/C. We’re that somebody. We did the wiring for an A/C swap for Advantage Heating & Cooling, an HVAC company we partner with, in Vancouver, WA, the same day their installers set the unit.

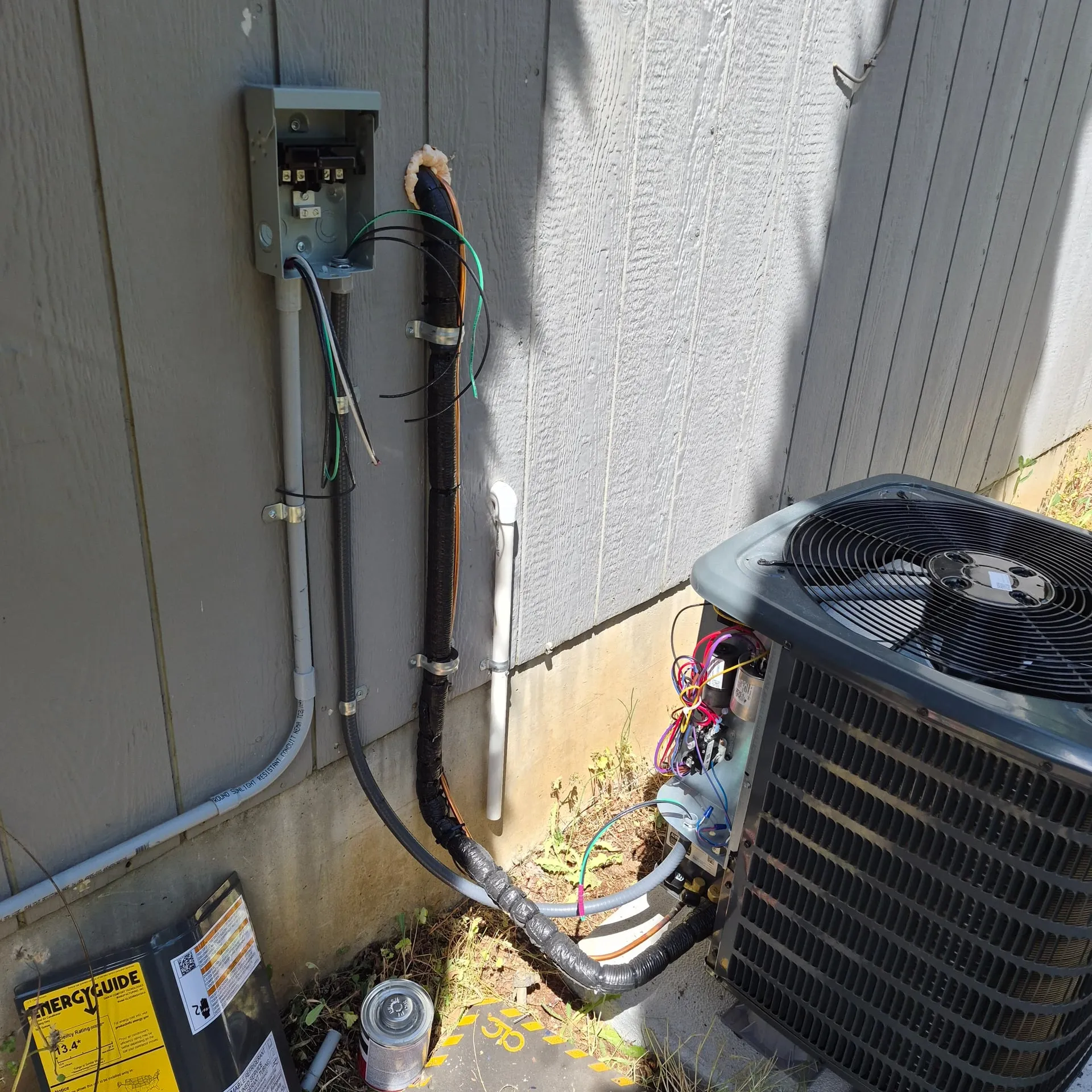

Replacing the disconnect

The old setup had a worn-out disconnect and a whip that had seen better days. A swap is when you replace those, not keep them going:

• A new weatherproof disconnect on the wall within sight of the condenser, per NEC 440.14
• Sealtight from the disconnect to the unit that flexes with vibration and keeps water out
• PVC conduit run neatly along the foundation so the wire’s protected and the install looks finished

The disconnect is what a service tech shuts off before working on the unit. Leaving an old rusty one to save twenty minutes is how you end up with a callback. New unit, new disconnect.

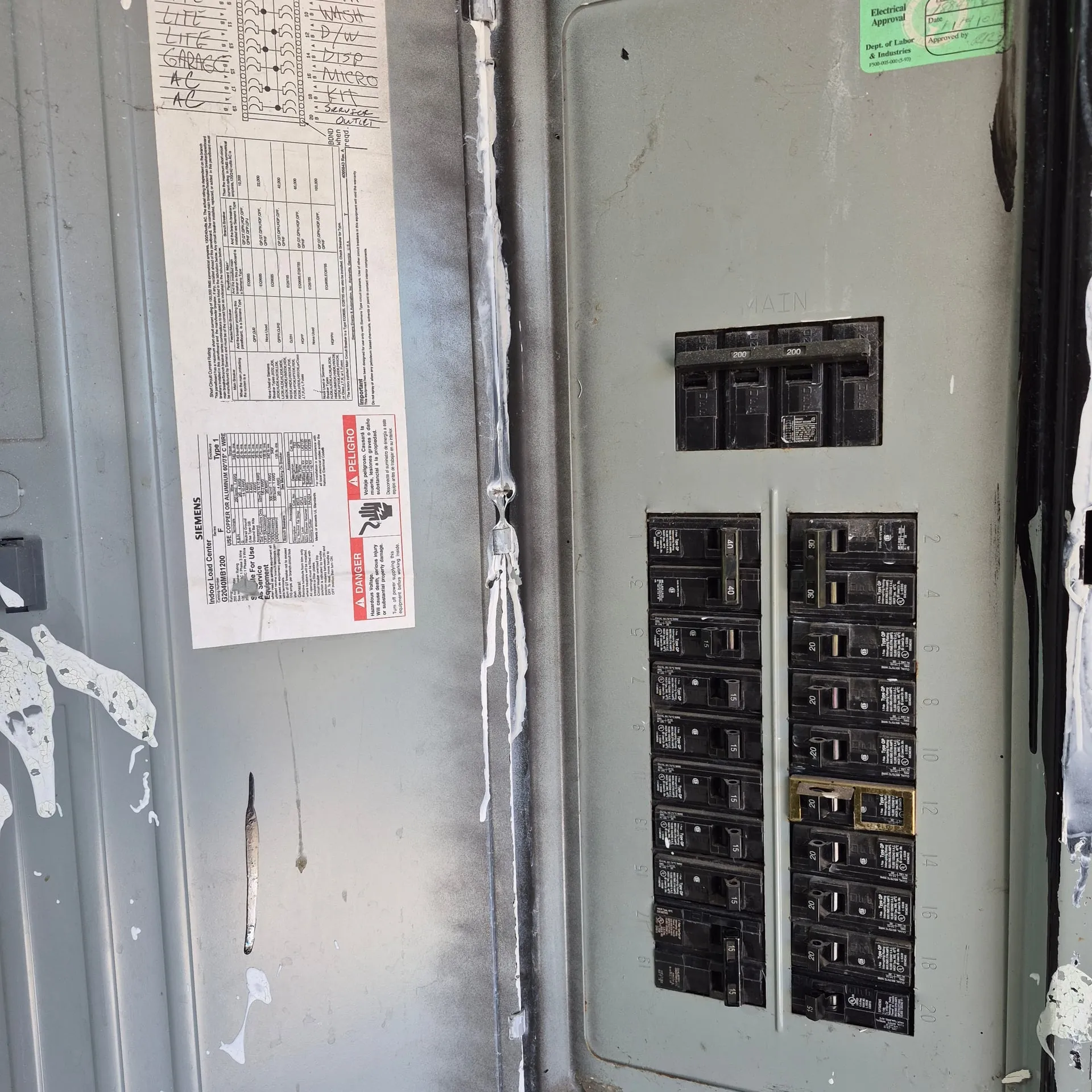

The circuit in a 200-amp panel

Inside, the house had a 200-amp Siemens panel with room to spare, so the condenser circuit went in clean:

1. Breaker sized to the new unit’s nameplate, not the old one’s
2. Wire matched to that breaker
3. Panel labels updated so the next person knows what’s what

A 200-amp panel is the easy case for an A/C swap, because there’s room to do it right without juggling loads. We checked the capacity, put in the A/C circuit and disconnect, and pulled the Clark County permit so the install was inspected and on record.

Why HVAC companies call us

For an HVAC company, the hard part of the day is finding an electrician who shows up on the right afternoon, does the circuit and disconnect to code, and handles the permit so nothing fails inspection. We treat the HVAC crew’s schedule as our deadline, because that’s their customer waiting.
