Panel Swap Plus Dedicated Sump Pump Circuits in Kalama, WA

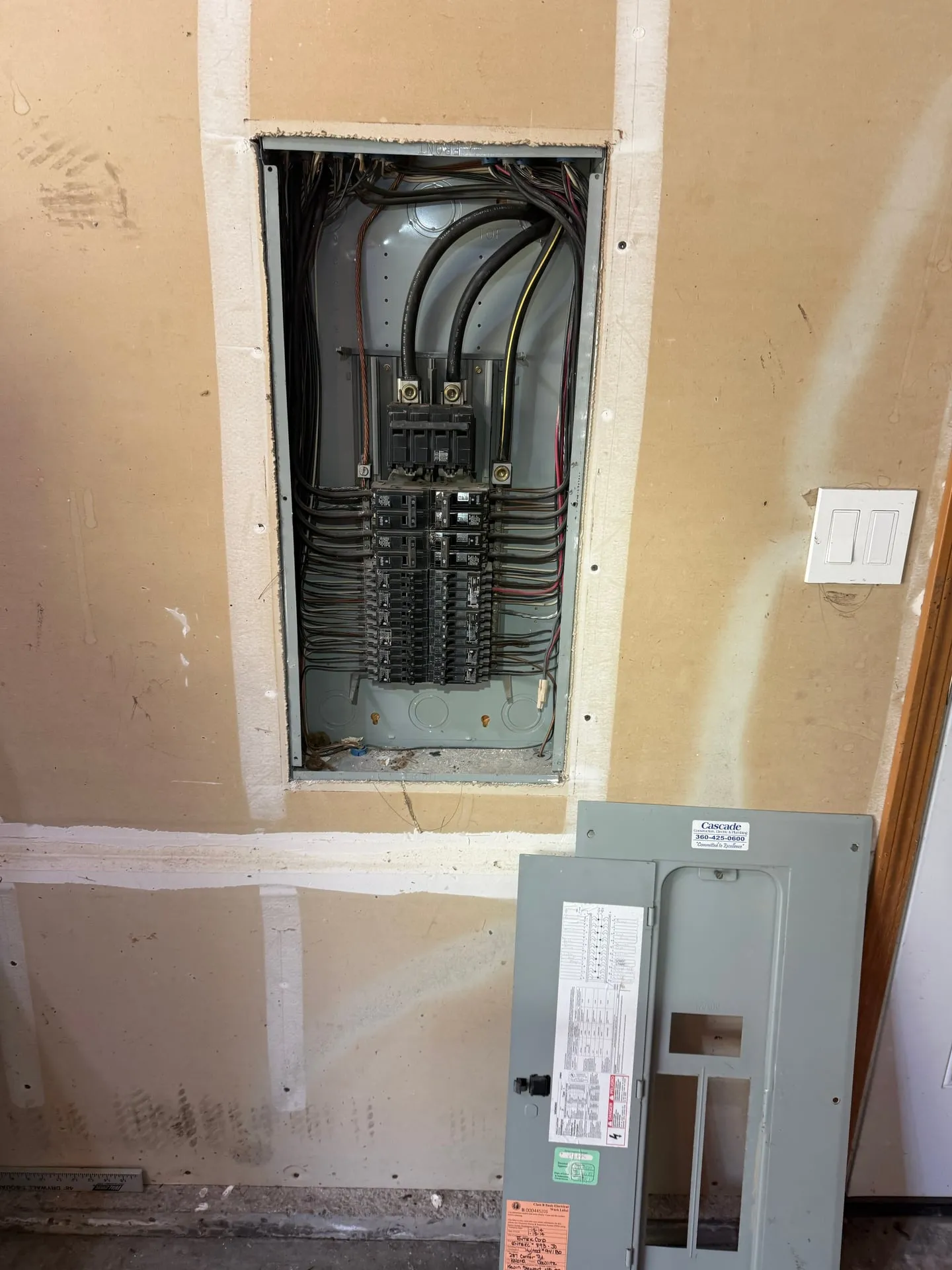

On this home in Kalama, we took out the original 30/60 panel. While it was open, we ran two dedicated 20-amp outlets for the sump pumps instead of leaving that for another trip.

Why a sump pump needs its own circuit

A sump pump runs when nobody’s watching, and it works hardest in the worst weather. If the breaker trips, you usually don’t find out until there’s water.

If the pump shares a circuit with something else:

• A tripped breaker shuts the pump off without anyone knowing. The freezer trips the circuit, and the pump’s been off a day before anybody sees water.
• The pump pulls a lot more power when it starts. On a shared circuit, that start-up surge is what trips the breaker.
• Two pumps on one breaker means one problem kills both. If you have a main pump and a backup, they need separate breakers.

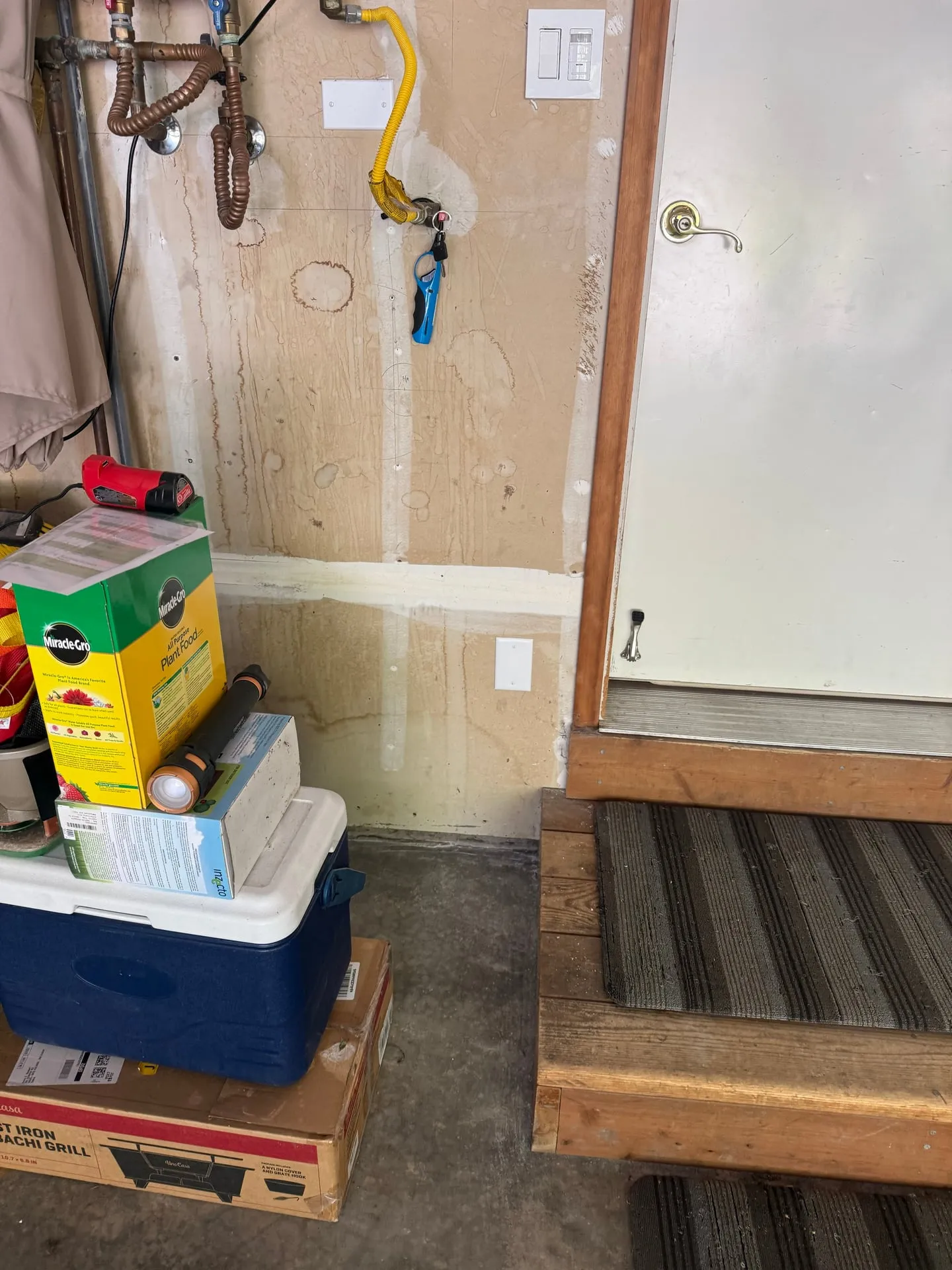

So each pump got its own 20-amp outlet on its own breaker. Same reason we’d put in a dedicated sump pump circuit anywhere else. The pump doesn’t use much power, but losing it costs a lot.

Doing it during the panel swap

We added the two circuits during the panel replacement, and that’s where the savings are.

The power was already off, the panel was already open, and we were putting in new breakers anyway. Adding two circuits right then takes very little extra time. Coming back in six months means another outage and paying for the setup twice.

Same with the surge protector we added at the top of the new panel. It’s a small add-on during a panel replacement and a hassle to add later.

Why the 30/60 was full

A 30/60 panel only has so many spaces for breakers. On a rural property you usually run out of spaces before you run out of power: shop circuits, well controls, outbuildings, freezers, and now sump pumps all need their own breaker.

A new panel with room to spare means the next addition is a small job, not a subpanel.

Got a full panel on a rural place around Kalama or Woodland and a pump you’d rather not worry about? Call 360-828-7143 or get the sump circuits added while the panel’s open.
