21 Cat6 Drops Run to the IT Rack in a Vancouver, WA Office

This office remodel inside Vancouver city limits needed up to 21 Cat6 drops pulled from the desks back to the IT rack. We ran and terminated all of them as part of the commercial data cabling job.

Why we run the data too

Low voltage and power are different trades on paper, but on a remodel it’s the same trip. Having one contractor do both saves you the most expensive mistakes:

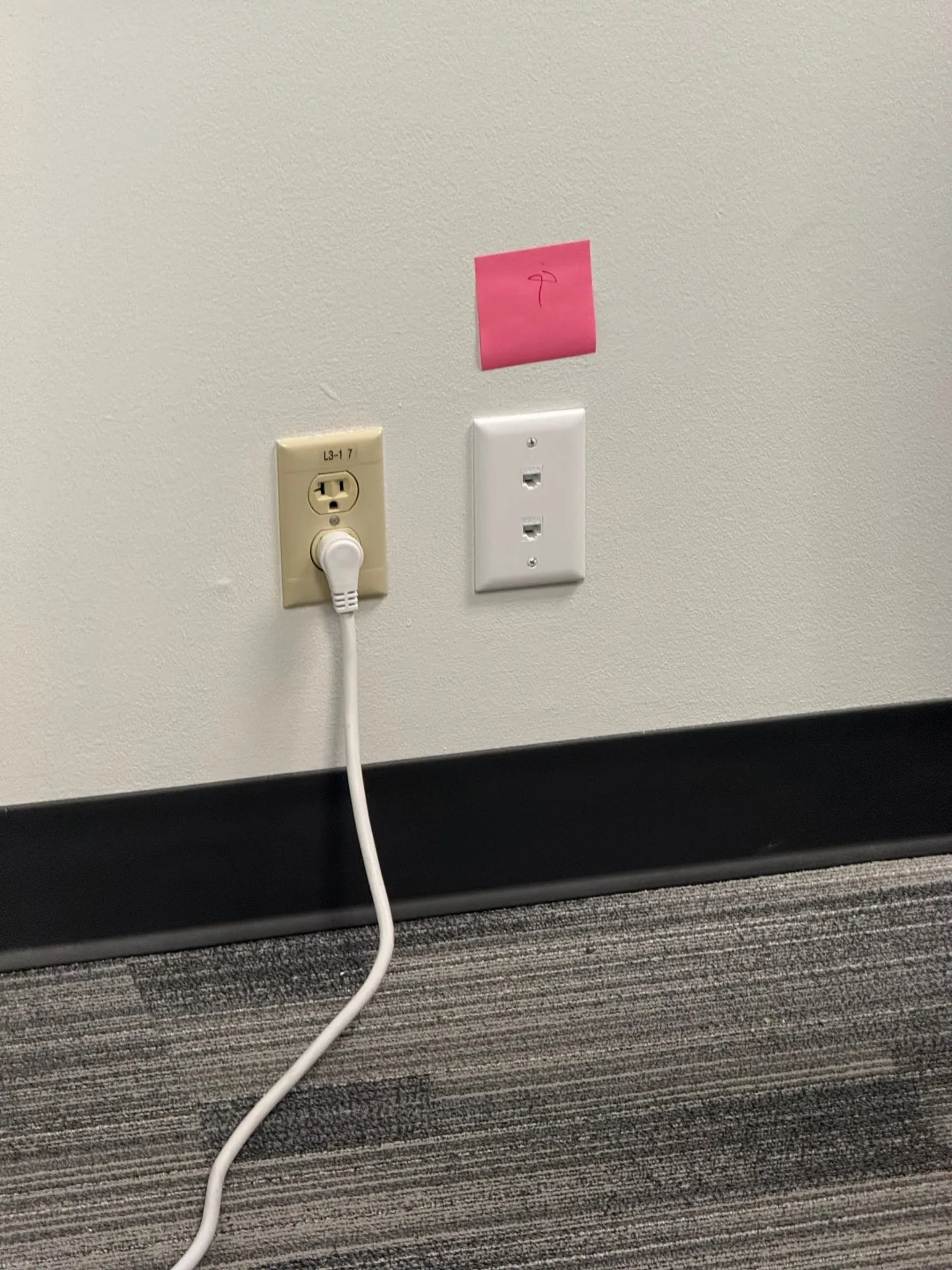

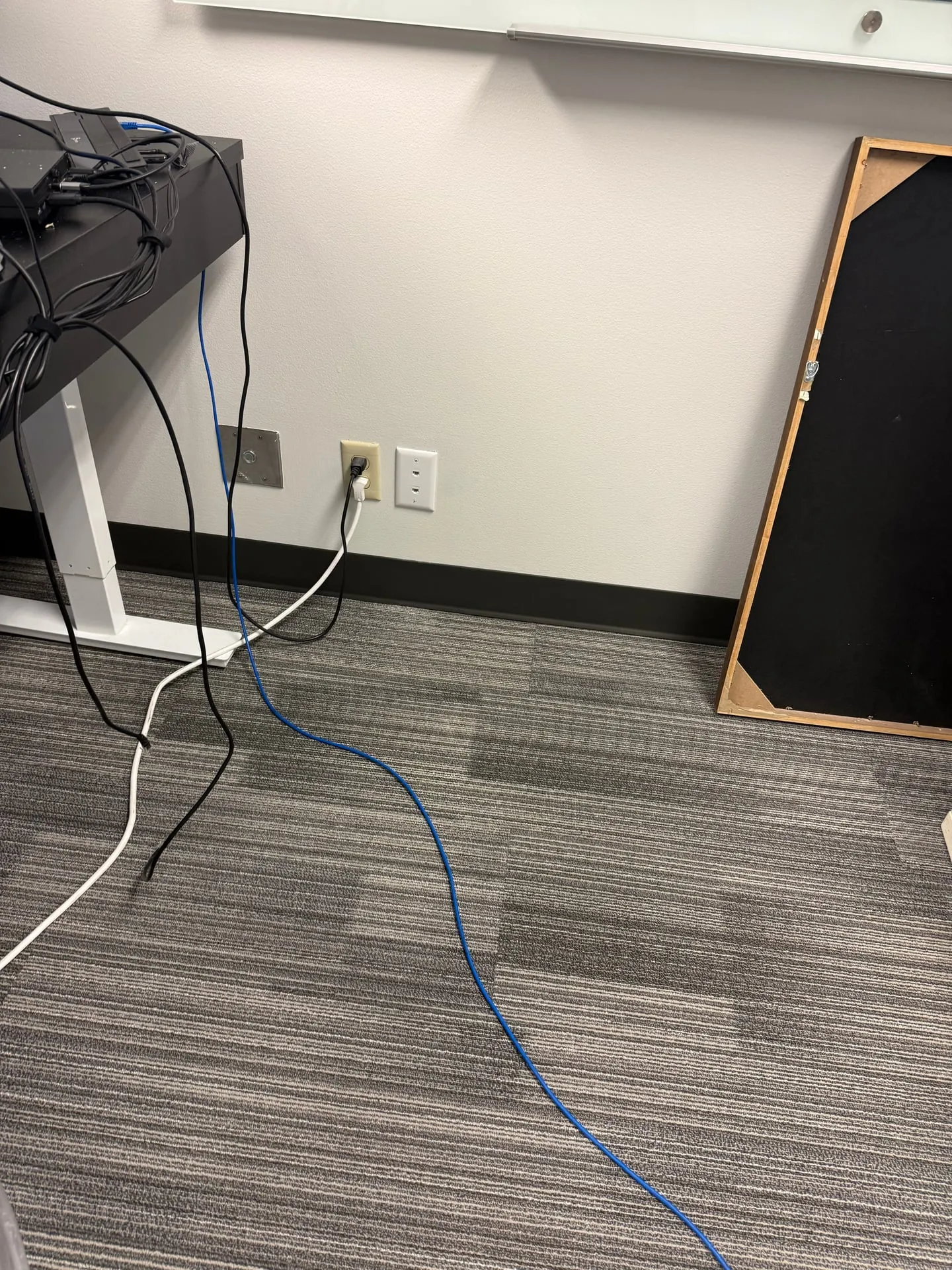

• The data jacks end up where the desks are, because the same people set the outlets and the jacks
• Data and power stay apart. Running them right next to each other puts noise on the data line, and we know the spacing that’s required
• The ceiling gets opened once. Two trades pulling through the same ceiling on different days means twice the disruption to a working office

Terminating both ends is most of the work

Pulling cable is what people picture. Terminating it is what takes the day.

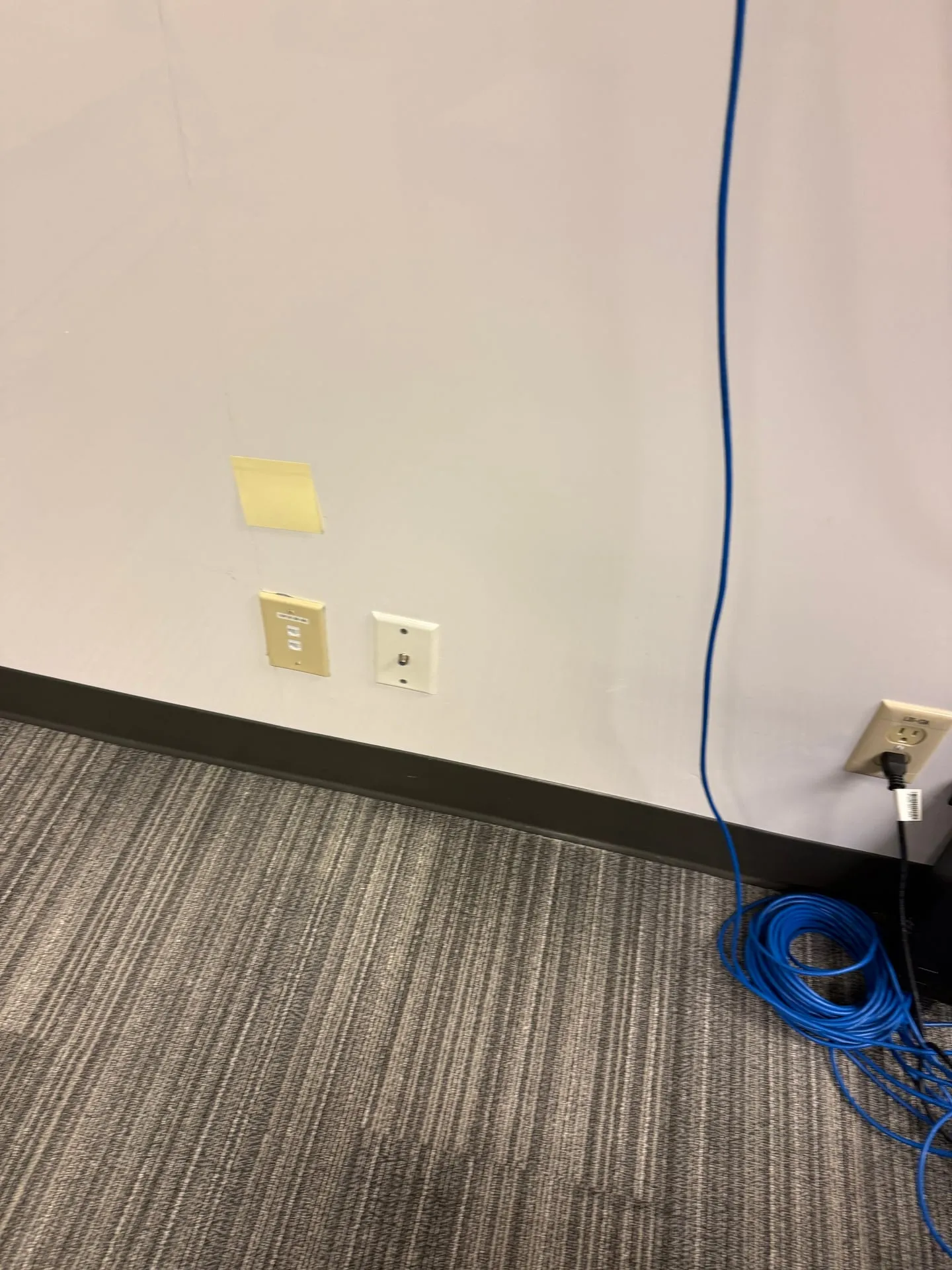

Each run gets terminated twice: once at a jack at the desk, and once at the rack. Both ends have to keep the wire pairs twisted right up to the termination, both have to be punched down the same way, and both get tested.

Twenty-one runs means forty-two terminations. One sloppy one gives you a drop that runs at a tenth of the speed, and nobody can figure out why.

The rack shows the work

The photo of the rack shows how good a cabling job is. When the bundles come in neat, supported and in order, whoever runs the network next year can trace them. A tangled mess can’t be traced, no matter how well each cable was pulled.

That goes for all tenant improvement work. The finished space gets judged by the parts nobody looks at.

Yes, it needs a permit

This went in on a City of Vancouver electrical permit. Commercial low voltage needs a permit in Washington, and on a remodel it’s something the landlord and the next tenant will ask about.

If you’re budgeting one of these, the cost is per run. Each run is its own pull, two terminations and a test.
